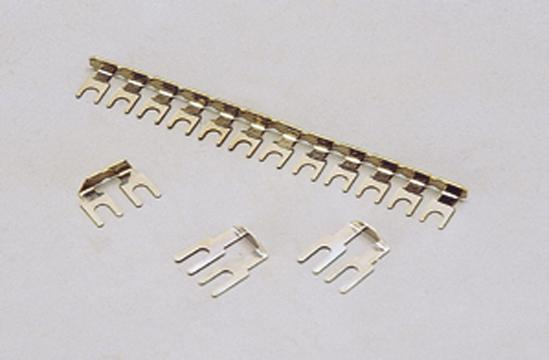

M05 端子台短路片

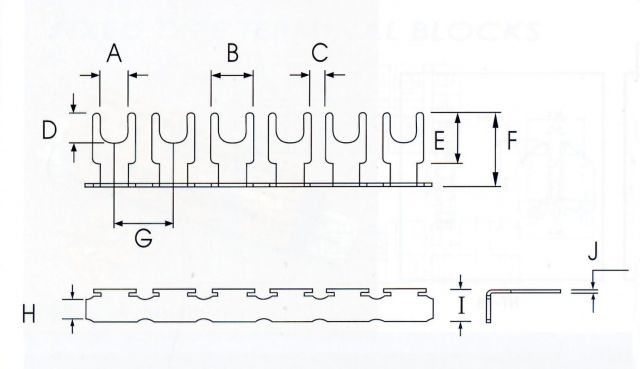

| 型號 | 適用端子台 | 尺寸 (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | ||
| SH-10-2P | NHT-10/NHC-10 | 3.4 | 6.5 | 2.8 | 8.0 | 11.1 | 17.6 | 9.0 | 4.2 | 4.2 | 0.5 |
| SH-30-2P | NHT20,30/NHC-20,30/MEC-25 | 4.0 | 7.1 | 4.0 | 6.0 | 9.0 | 12.0 | 11.1 | 4.0 | 5.0 | 0.5 |
| SH-10-12P | NHT-10/NHC-10 | 4.1 | 6.2 | 2.7 | 5.0 | 9.1 | 12.7 | 8.9 | 4.0 | 5.0 | 0.5 |
| SH-20-12P | NHT-20/NHC-20 | 4.0 | 7.1 | 4.0 | 5.5 | 9.0 | 12.0 | 11.1 | 3.0 | 5.0 | 0.5 |
| SH-15-10P | MEC-15 | 3.2 | 5.6 | 1.4 | 6.0 | 8.2 | 13.0 | 7 | 2.5 | 4.2 | 0.8 |
