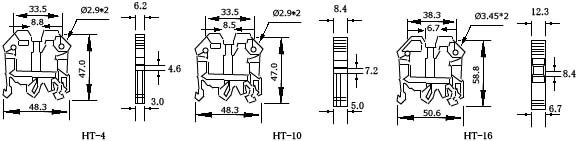

型號 |
HT-2.5 |
HT-4 |
HT-10 |
HT-16 |
HT-35 |
HT-50 |
HT-95 |
|
耐電壓 |
VDE-750V Gr.c/CSA-600V/UL-600V |
VDE-750V Gr.c/CSA-600V/UL-600V |
VDE-750V Gr.c/CSA-600V/UL-600V |
VDE-750V Gr.c/CSA-600V/UL-600V |
VDE-750V Gr.c/CSA-600V/UL-600V |
VDE-1000V Gr.c/CSA-600V/UL-600V |
VDE-1000V Gr.c/CSA-600V/UL-600V |
|
額定電流 |
26A/26A/20A AWG12 |
34A/30A/30A AWG10 |
55A/50A/50A AWG8 |
75A/70A/70A AWG6 |
135A/100A/115A AWG2 |
18A/150A/150A AWG1/0-6 |
250A/230A/230A AWG4/0-2 |
|
適用鋁軌種類 |
15&32&35mm |
15＆32＆35mm |
15＆32＆35mm |
15＆32＆35mm |
15&32&35mm |
15＆32＆35mm |
15＆32＆35mm |
|
防火等級 |
UL-94VO |
UL-94VO |
UL-94VO |
UL-94VO |
UL-94VO |
UL-94VO |
UL-94VO |
|
撥線長度 |
7mm |
11.5mm |
12mm |
15mm |
18mm |
27mm |
30mm |
|
導體接觸截面 |
0.2~2.5m㎡ AWG22-12 |
0.2~4m㎡ AWG22-10 |
0.2~10m㎡ AWG22-8 |
2.5~16m㎡ AWG12-6 |
2.5~35m㎡ AWG12-2 |
25~50m㎡ AWG1/0-6 |
3.5~95m㎡ AWG4/0-2 |
|
包裝 |
200PCS |
100pcs |
100pcs |
50pcs |
20PCS |
1pcs |
1pcs |
