M14 低壓礙子
|

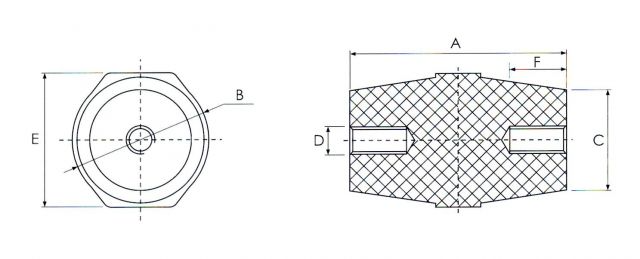

型號 |
尺寸 (mm) |
|||||
|
A |
B |
C |
D |
E |
F |
|
|
LV-25A |
25.5 |
31 |
25 |
M6 |
31 |
9.5 |
|
LV-35A |
35 |
32 |
28 |
M8 |
32 |
10 |
|
LV-51A |
51 |
35 |
28 |
M8 |
35 |
10 |
|
LV-76A |
76 |
48 |
36 |
M10 |
48 |
18 |
1.工頻耐壓實驗2500V/1min
2.絕緣電阻(Ω)＞10.9
3.介電強度KV/mm＞10
