夾緊圈孔數 |
型號 |

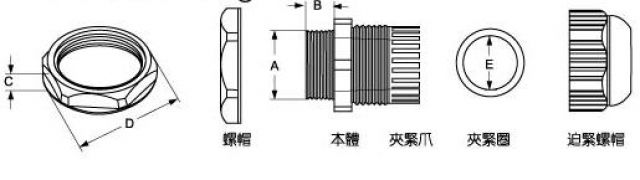

尺寸 |
|
|
|
|
|||
|
|
|
A(mm) |
B(mm) |
C(mm) |
D(mm) |
出線孔徑Emm |
適用範圍 |
牙制 |
包裝 |
|
2孔 |
M-20K-H2-6 |
20 |
13 |
6.5 |
29 |
6 |
4.5~6 |
M20*1.5 |
100PCS |
|
2孔 |
M-20K-L7-H2-6 |
20 |
13 |
6.5 |
29 |
6 |
4.5~6 |
M20*1.5 |
100PCS |
|
2孔 |
M-25-H2-8 |
25 |
15 |
7.5 |
36 |
8 |
6.5~8 |
M25*1.5 |
50PCS |
|
2孔 |
M-32-H2-10 |
32 |
15 |
7.7 |
47.3 |
10 |
8~10 |
M32*1.5 |
25PCS |
|
2孔 |
EG-13.5-H2-6 |
20.4 |
13 |
6 |
27 |
6 |
4.5~6 |
PG13.5 |
100PCS |
|
2孔 |
EG-13.5S-H2-6 |
19.8 |
8.8 |
6 |
27 |
6 |
4.5~6 |
PG13.5 |
100PCS |
|
2孔 |
EG-16-H2-6 |
22.5 |
11 |
6.4 |
32 |
6 |
4.5~6 |
PG16 |
100PCS |
|
2孔 |
EG-16-L15-H2-6 |
22.1 |
8 |
6.4 |
32 |
6 |
4.5~6 |
PG16 |
100PCS |
|
2孔 |
EG-16-L15-H2-6 22.5 |
22.5 |
15 |
6.4 |
32 |
6 |
4.5~6 |
PG16 |
100PCS |
|
2孔 |
EG-29-H2-10 |
37 |
15 |
8 |
48 |
10 |
8~10 |
PG29 |
25PCS |
|
2孔 |
PF-21-H2-6 |
20.955 |
12 |
6.1 |
29 |
6 |
4.5~6 |
PF1/2" |
100PCS |
|
2孔 |
PF-21K-H2-6 |
20.955 |
12 |
6.1 |
29 |
6 |
4.5~6 |
PF1/2" |
100PCS |
|
3孔 |
M-12-H3-3 |
12 |
10 |
5.2 |
18.5 |
3 |
1~3 |
M12X1.5 |
100PCS |
|
3孔 |
M-20-H3-5 |
20 |
13 |
6.5 |
29 |
5 |
4~5 |
M20X1.5 |
100PCS |
|
3孔 |
M-20K-L3-H3-5 |
20 |
13 |
6.5 |
29 |
5 |
4~5 |
M20X1.5 |
100PCS |
|
3孔 |
M-25-H3-8 |
25 |
15 |
7.5 |
36 |
8 |
6.5~8 |
M25X1.5 |
50PCS |
|
3孔 |
M-32-H3-10 |
32 |
15 |
7.7 |
47.3 |
10 |
8~10 |
M32X1.5 |
25PCS |
|
3孔 |
M-40-H3-13 |
40.000 |
20 |
8.2 |
59 |
13 |
11.5~13 |
M40X1.5 |
10PCS |
|
3孔 |
EG-07-H3-3 |
12.5 |
10 |
5.5 |
18.5 |
3 |
1~3 |
PG7 |
100PCS |
|
3孔 |
EG-29-H3-10 |
37 |
15 |
8 |
48 |
10 |
8~10 |
PG29 |
25PCS |
|
3孔 |
EG-36-H3-13 |
47 |
15 |
8 |
59.2 |
13 |
11.5~13 |
PG36 |
25PCS |
|
3孔 |
EG-48-H3-13 |
47.803 |
12 |
7.5 |
65.5 |
13 |
11.5~13 |
PF1 1/2" |
10PCS |
|
4孔 |
M-25-H4-7 |
25 |
15 |
7.5 |
36 |
7 |
5~7 |
M25X1.5 |
50PCS |
|
4孔 |
M-32-H4-9 |
32 |
15 |
7.5 |
47.3 |
9 |
7.5~7 |
M32X1.5 |
25PCS |
|
4孔 |
M-16-H4-5 |
22.5 |
11 |
11 |
32 |
5 |
4~5 |
PG16 |
100PCS |
|
4孔 |
M-16S-H4-5 |
22.1 |
8 |
6.4 |
32 |
5 |
4~5 |
PG16 |
100PCS |
|
4孔 |
M-21-H4-7 |
28.3 |
13 |
7 |
39 |
7 |
5~7 |
PG21 |
50PCS |
|
4孔 |
M-21S-H4-7 |
27.8 |
12 |
7 |
39 |
7 |
5~7 |
PG21 |
50PCS |
|
4孔 |
M-29-H4-9 |
37 |
15 |
8 |
48 |
9 |
7.5~9 |
PG29 |
25PCS |
|
4孔 |
M-26-H4-7 |
26.441 |
7 |
7 |
40 |
7 |
5~7 |
PF3/4" |
50PCS |
|
4孔 |
M-26-L7-H4-7 |
26.441 |
7 |
7 |
40 |
7 |
5~7 |
PF3/4" |
50PCS |
|
5孔 |
M-32-H5-6 |
32 |
15 |
7.7 |
47.3 |
6 |
4.5~6 |
M32X1.5 |
25PCS |
|
5孔 |
EG-29-H5-6 |
37 |
15 |
8 |
48 |
6 |
4.5~6 |
PG29 |
25PCS |
|
8孔 |
M-63-H8-11 |
63 |
20 |
8.5 |
82 |
11 |
9.5~11 |
M63X1.5 |
10PCS |
|
*以上產品不附橡膠墊片，需另行購買。 |
|
|
|
|
|
|
|
||
