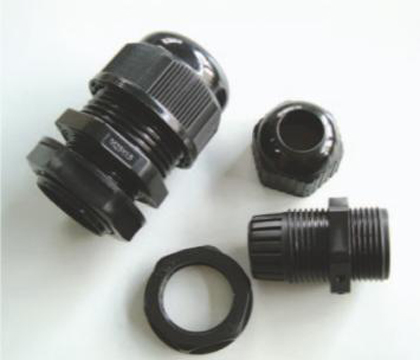

使用:用於固定電纜線，使其電纜線在於機械控制箱，機器、電器上不至於受損。
優點:夾緊圈之拉力強，不會造成電纜線之損傷，此固定頭之設計，電纜可直接穿入上緊即可，省時方便。

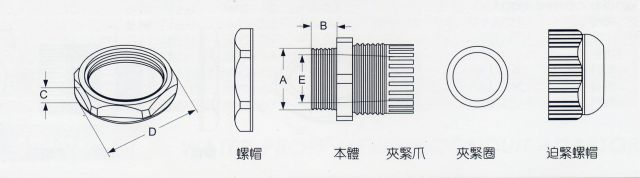

| PF牙規格(G) |
|
|
|
|
|
|
|
型號 |
機板孔徑A(mm) |
螺紋長度L(mm) |
規格 |
適用浪管/尼龍管 |
包裝 |
牙制 |
|
FCW-18A |
21 |
10 |
3/8”(3分) |
PB-03 |
50PCS |
PF1/2” |
|
FCW-22A |
21 |
10 |
1/2”(4分) |
PB-04 |
50PCS |
PF1/2” |
|
FCW-22A-L15 |
21 |
15 |
1/2”(4分) |
PB-04 |
50PCS |
PF1/2” |
|
FCW-22A-3/4” |
26.4 |
10 |
1/2”(4分) |
PB-04 |
50PCS |
PF3/4” |
|
FCW-26A |
26.4 |
12 |
3/4”(6分) |
PB-06 |
50PCS |
PF3/4” |
|
FCW-34A |
33.2 |
16 |
1”(1寸) |
PB-10 |
25PCS |
PF1” |
|
FCW-42A |
42 |
16 |
11/4”(1寸2分) |
PB-12 |
25PCS |
PF11/4” |
|
FCW-60A |
59.6 |
22 |
2”(2寸) |
PB-20 |
10PCS |
PF2” |
| PG牙規格(DIN) |
|
|
|
|
|
|
|
FCW-13A |
12.5 |
11 |
1/4”(2分) |
PB-02 |
100PCS |
PG7 |
|
FCW-16A |
15.2 |
11 |
5/16”(2分半) |
PB-02-05 |
100PCS |
PG9 |
|
FCW-16PG11 |
18.6 |
13 |
5/16”(2分半) |
PB-02-05 |
100PCS |
PG11 |
|
FCW-16PG11S |
18.2 |
12.5 |
5/16”(2分半) |
PB-02-05 |
100PCS |
PG11 |
|
FCW-18PG11 |
18.6 |
10.5 |
3/8”(3分) |
PB-03 |
50PCS |
PG11 |
|
FCW-18PG |
20.4 |
13 |
3/8”(3分) |
PB-03 |
50PCS |
PG13.5 |
|
FCW-22PG13.5 |
20.4 |
10.5 |
1/2”(4分) |
PB-04 |
50PCS |
PG13.5 |
|
FCW-22PG |
22.5 |
13 |
1/2”(4分) |
PB-04 |
50PCS |
PG16 |
|
FCW-26PG |
28.3 |
15 |
3/4”(6分) |
PB-06 |
50PCS |
PG21 |
|
FCW-34PG |
37 |
16 |
1”(1寸) |
PB-10 |
25PCS |
PG29 |
|
FCW-42PG |
47 |
13 |
1 1/4”(1寸2分) |
PB-12 |
25PCS |
PG36 |
|
FCW-60PG |
59.3 |
16 |
2”(2寸) |
PB-20 |
10PCS |
PG48 |
| M牙規格(METRIC) |
|
|
|
|
|
|
|
FCW-16M |
16 |
11 |
5/16”(2分半) |
PB-02-05 |
100PCS |
M16X1.5 |
|
FCW-18M |
20 |
10.5 |
3/8”(3分) |
PB-03 |
50PCS |
M20X1.5 |
|
FCW-22M |
20 |
10.5 |
1/2”(4分) |
PB-04 |
50PCS |
M20X1.5 |
|
FCW-22M-M25 |
25 |
10 |
1/2”(4分) |
PB-04 |
50PCS |
M25X1.5 |
|
FCW-26M |
25 |
15 |
3/4”(6分) |
PB-06 |
50PCS |
M25X1.5 |
|
FCW-30M |
30 |
16 |
1”(1寸) |
PB-10 |
25PCS |
M30X1.5 |
|
FCW-34M |
32 |
16 |
1”(1寸) |
PB-10 |
25PCS |
M32X1.5 |
|
FCW-42M |
40 |
15 |
1 1/4”(1寸2分) |
PB-12 |
25PCS |
M40X1.5 |
|
FCW-60M |
63 |
25 |
2”(2寸) |
PB-20 |
10PCS |
M63X1.5 |
