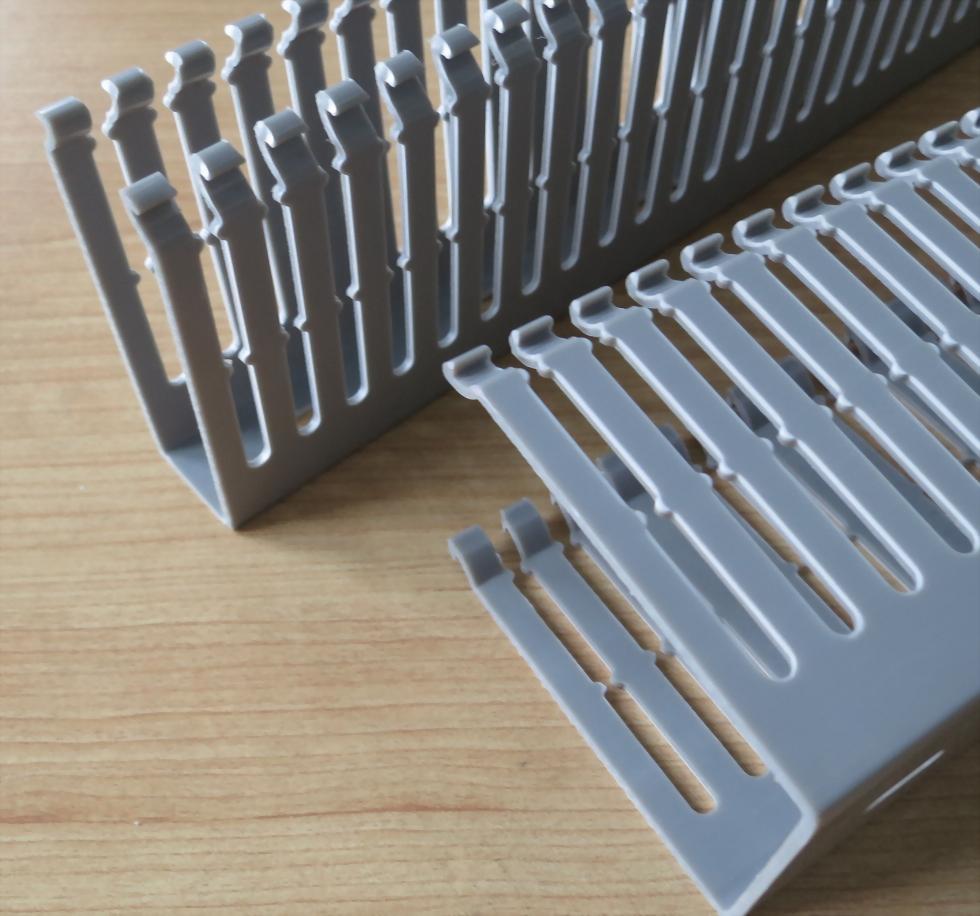

A01-2 歐規蝴蝶孔絕緣配線槽
材質:採用硬質PVC料精製，絕緣佳、不自燃、耐高溫。
構造:由底槽及蓋兩部份組成，底槽兩側設出線孔。
使用:先將底槽固定，再裝入配線於槽中，然後上蓋。
特點:組合容易，不脫落，接合面平滑不傷手。
|

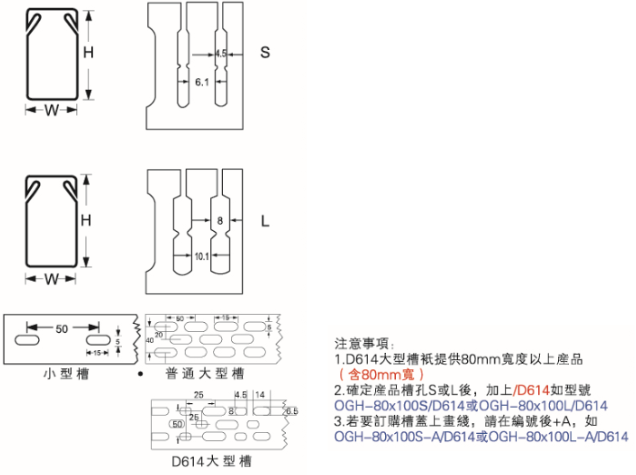

寬x高 W(mm)xH(mm) |
電源容量 (以2.0平方計算) |
出線孔 | 長度 |
|---|---|---|---|
| OGH-16x16 | 2-4 PCS | S L | 含槽底及槽蓋 |
| OGH-25x16 | 5-10 PCS | ||
| OGH-38x16 | 10-20 PCS | ||
| OGH-20x20 | 5-12 PCS | ||
| OGH-15x25 | 5-12 PCS | ||
| OGH-25x25 | 10-25 PCS | ||
| OGH-40x25 | 20-25 PCS | ||
| OGH-25x30 | 10-28 PCS | ||
| OGH-30x30 | 25-42 PCS | ||
| OGH-33x33 | 25-45 PCS | S L | 含槽底及槽蓋 |
| OGH-25x40 | 20-25 PCS | ||
| OGH-40x40 | 60-70 PCS | ||
| OGH-60x40 | 100-115 PCS | ||
| OGH-80x40 | 120-135 PCS | ||
| OGH-25x45 | 20-25 PCS | ||
| OGH-33x45 | 40-55 PCS | ||
| OGH-45x45 | 60-70 PCS | ||
| OGH-65x45 | 110-120 PCS | ||
| OGH-25x50 | 20-30 PCS | S L | 含槽底及槽蓋 |
| OGH-35x50 | 40-60 PCS | ||
| OGH-50x50 | 80-90 PCS | ||
| OGH-80x50 | 180-200 PCS | ||
| OGH-100x50 | 215-250 PCS | ||
| OGH-20x60 | 35-40 PCS | ||
| OGH-25x60 | 40-45 PCS | ||
| OGH-40x60 | 100-115 PCS | ||
| OGH-60x60 | 120-135 PCS | ||
| OGH-80x60 | 180-210 PCS | S L | 含槽底及槽蓋 |
| OGH-100x60 | 240-290 PCS | ||
| OGH-25x65 | 40-45 PCS | ||
| OGH-33x65 | 60-75 PCS | ||
| OGH-45x65 | 110-120 PCS | ||
| OGH-65x65 | 180-200 PCS | ||
| OGH-70x65 | 200-220 PCS | ||
| OGH-200x65 | 390-520 PCS | ||
| OGH-150x75 | 335-500 PCS | ||
| OGH-25x80 | 100-120 PCS | S L | 含槽底及槽蓋 |
| OGH-40x80 | 120-135 PCS | ||
| OGH-50x80 | 180-200 PCS | ||
| OGH-60x80 | 180-210 PCS | ||
| OGH-80x80 | 240-290 PCS | ||
| OGH-100x80 | 260-350 PCS | ||
| OGH-120x80 | 300-400 PCS | ||
| OGH-33x100 | 180-200 PCS | ||
| OGH-40x100 | 190-220 PCS | S L | 含槽底及槽蓋 |
| OGH-50x100 | 215-250 PCS | ||
| OGH-60x100 | 240-290 PCS | ||
| OGH-70x100 | 250-300 PCS | ||
| OGH-80x100 | 260-350 PCS | ||
| OGH-100x100 | 300-400 PCS | ||
| OGH-120x100 | 320-420 PCS | ||
| OGH-150x100 | 450-600 PCS | ||
| OGH-200x100 | 600-800 PCS | ||
| OGH-300x100 | 1040-1200 PCS | ||
| OGH-100x125 | 320-420 PCS | S L | 含槽底及槽蓋 |
