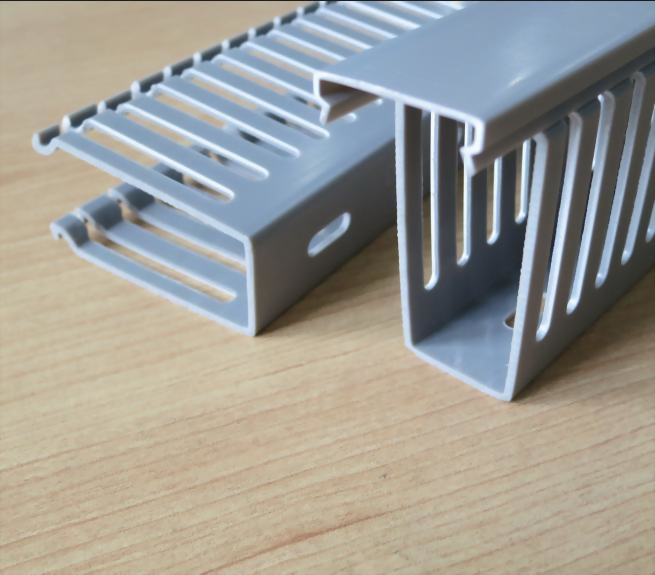

A01-1 歐規絕緣配線槽
材質:採用硬質PVC料精製，絕緣佳、不自燃、耐高溫。
構造:由底槽及蓋兩部份組成，底槽兩側設出線孔。
使用:先將底槽固定，再裝入配線於槽中，然後上蓋。
特點:組合容易，不脫落，接合面平滑不傷手。
|
寬x高 W(mm)xH(mm) |
電源容量 (以2.0平方計算) |
出線孔 | 長度 |
|---|---|---|---|
| OG-16x16 | 2-4 PCS | S M L | 含槽底及槽蓋 |
| OG-25x16 | 5-10 PCS | ||
| OG-38x16 | 10-20 PCS | ||
| OG-20x20 | 5-12 PCS | ||
| OG-15x25 | 5-12 PCS | ||
| OG-25x25 | 10-25 PCS | ||
| OG-40x25 | 20-25 PCS | ||
| OG-25x30 | 10-28 PCS | ||
| OG-30x30 | 25-42 PCS | ||
| OG-33x33 | 25-45 PCS | S M L | 含槽底及槽蓋 |
| OG-25x40 | 20-25 PCS | ||
| OG-40x40 | 60-70 PCS | ||
| OG-60x40 | 100-115 PCS | ||
| OG-80x40 | 120-135 PCS | ||
| OG-25x45 | 20-25 PCS | ||
| OG-33x45 | 40-55 PCS | ||
| OG-45x45 | 60-70 PCS | ||
| OG-65x45 | 110-120 PCS | ||
| OG-25x50 | 20-30 PCS | S M L | 含槽底及槽蓋 |
| OG-35x50 | 40-60 PCS | ||
| OG-50x50 | 80-90 PCS | ||
| OG-80x50 | 180-200 PCS | ||
| OG-100x50 | 215-250 PCS | ||
| OG-20x60 | 35-40 PCS | ||
| OG-25x60 | 40-45 PCS | ||
| OG-40x60 | 100-115 PCS | ||
| OG-60x60 | 120-135 PCS | ||
| OG-80x60 | 180-210 PCS | S M L | 含槽底及槽蓋 |
| OG-100x60 | 240-290 PCS | ||
| OG-25x65 | 40-45 PCS | ||
| OG-33x65 | 60-75 PCS | ||
| OG-45x65 | 110-120 PCS | ||
| OG-65x65 | 180-200 PCS | ||
| OG-70x65 | 200-220 PCS | ||
| OG-200x65 | 390-520 PCS | ||
| OG-150x75 | 335-500 PCS | ||
| OG-25x80 | 100-120 PCS | S M L | 含槽底及槽蓋 |
| OG-40x80 | 120-135 PCS | ||
| OG-50x80 | 180-200 PCS | ||
| OG-60x80 | 180-210 PCS | ||
| OG-80x80 | 240-290 PCS | ||
| OG-100x80 | 260-350 PCS | ||
| OG-120x80 | 300-400 PCS | ||
| OG-33x100 | 180-200 PCS | ||
| OG-40x100 | 190-220 PCS | ||
| OG-50x100 | 215-250 PCS | S M L | 含槽底及槽蓋 |
| OG-60x100 | 240-290 PCS | ||
| OG-70x100 | 250-300 PCS | ||
| OG-80x100 | 260-350 PCS | ||
| OG-100x100 | 300-400 PCS | ||
| OG-120x100 | 320-420 PCS | ||
| OG-150x100 | 450-600 PCS | ||
| OG-200x100 | 600-800 PCS | ||
| OG-300x100 | 1040-1200 PCS | ||
| OG-100x125 | 320-420 PCS | S M L | 含槽底及槽蓋 |

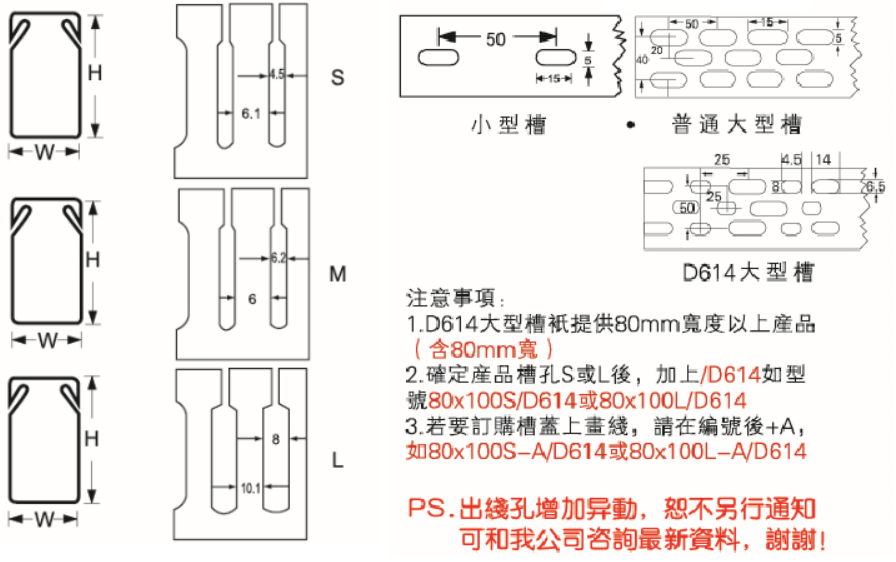

注意事項:
1.D614大型槽只提供80mm寬度以上產品(含80mm寬)
2.確定產品槽孔S或L後,加上/D614如型號OG-80*100S/
D614或OG-80*100L/D614
3.若要訂購槽蓋上畫線,請在編號後+A,如OG-80*100S-
A/D614或OG-80*100L-A/D614
PS.出線孔增加變動,恕不另行通知可和我公司諮詢最新資料,謝謝.
規格
| 類型 | Slotted |
|---|
